What is Metal Roofing?
A metal roof is a roofing system made from metal pieces or tiles characterized by its high resistance, impermeability and longevity. It is a component of the building envelope. Zinc, copper and steel alloys are commonly used.
Purlins

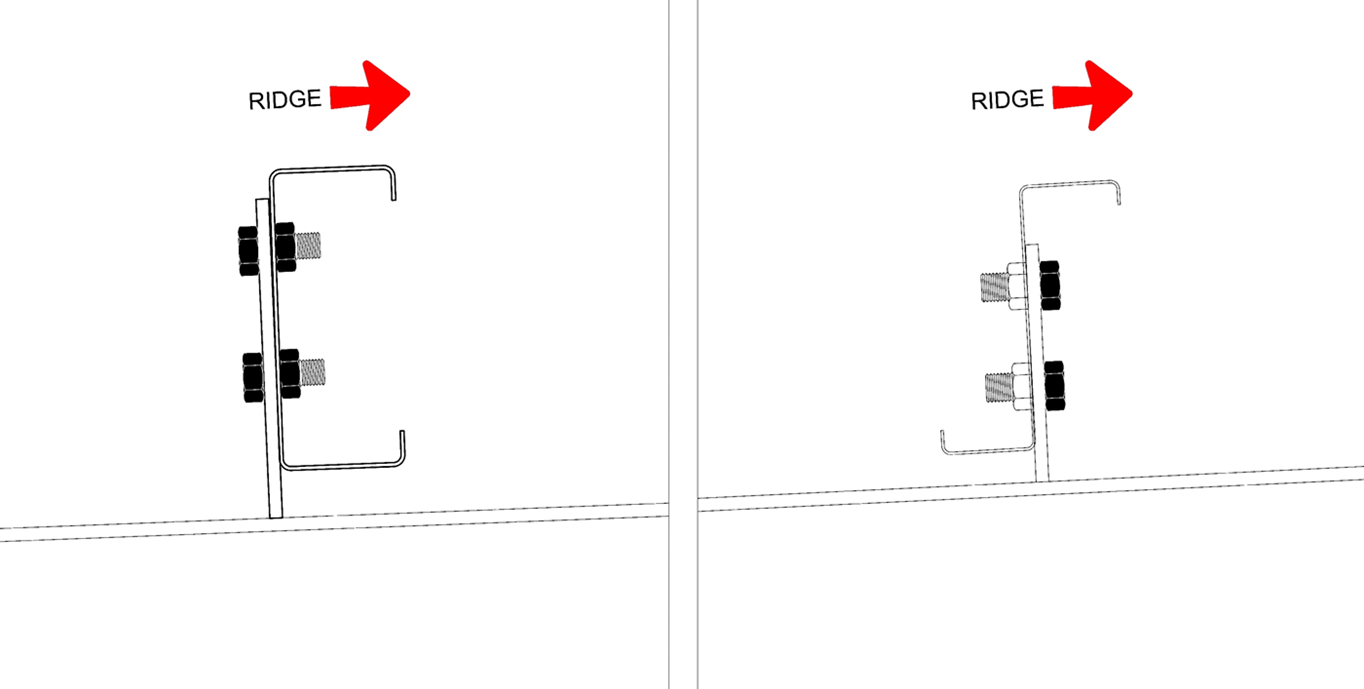

- Prior to the installation of roofing sheeting, purlins must be orientated correctly and on the correct side of the cleats.
Safety Mesh
- Refer to the section Safety Mesh of the Health and Safety Handbook

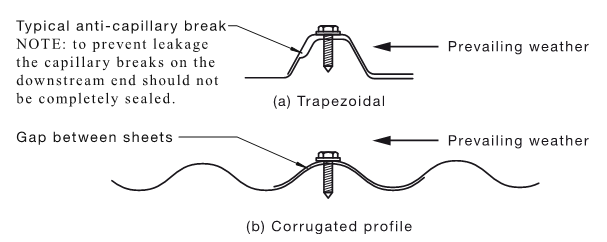

- Sheeting must be lapped in the right direction with regard to ‘over’ versus ‘under’ i.e. the side lap is to face away from prevailing weather.
Multiplex Standard Details

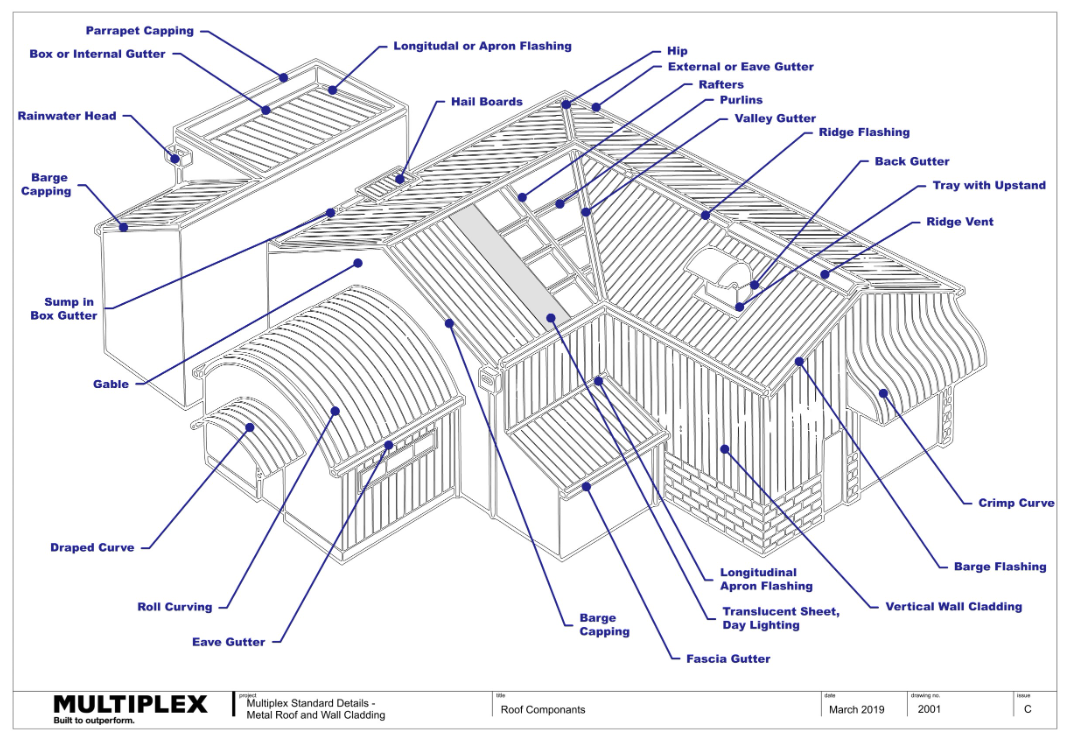

Click the link below to download the drawings.
2002 - Typical Box or Lear Gutter to Veneer Wall
2003 - Metal Framed Parapet Capping and Transverse Flashing
2004 - Typical Roof to Concrete Head Wall Detail Option 1
2005 - Typical Roof to Concrete Head Wall Detail Option 2
2025 - Toe-mould Flashing Detail 1
2026 - Toe-mould Flashing Details 2
2031 - Purlin Orientation and Attachment Points
