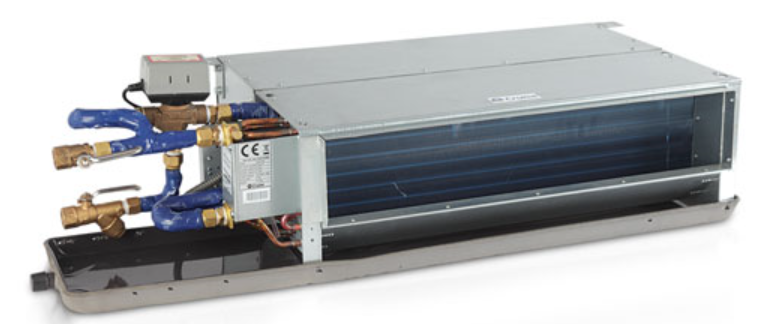

Fan Coil Units
Condensate Drains
- Condensate drains must be installed with a:
- Positive fall

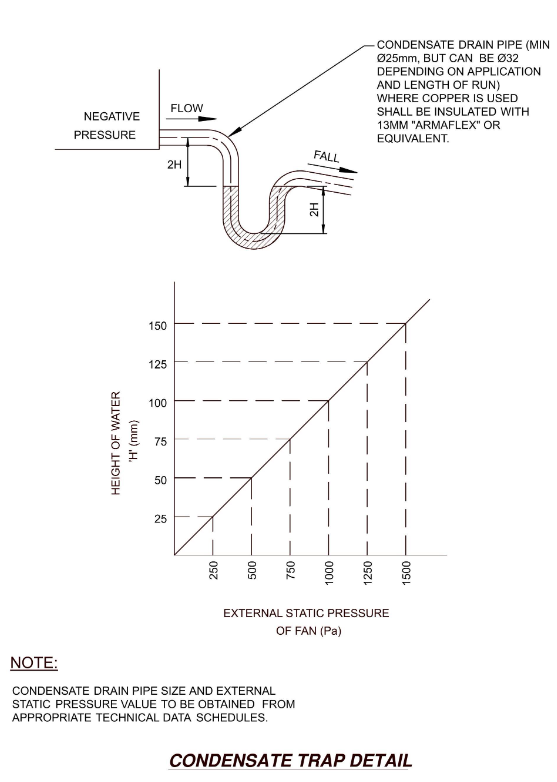

- ‘P” Trap fitted and have an adequate fall
- Tundish that is:
- Accessible
- Visible (sometimes in wall tundish, box with visible panel is used).

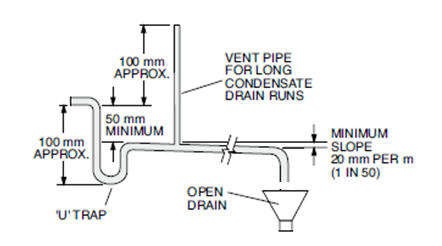

- Connected in the ways outlined in AS/NZS 3500.2:2015 Clause 13.21. (refer example below).
- Drain line that is insulated over the first 3m
- Drain trap that contains a transparent section to view flow
- Discharge pipe over a tundish with an air gap of a size at least twice the internal diameter of the discharging pipe.
Condensate Drain Test
- Condensate drains must be tested after the ceiling grid has been installed.
Connections
- Fan coil units in ceilings must be installed with:
- Approved vibration isolation from the structure on which they are mounted.
- Flexible connections between unit and rigid ducting.
Access
- Fan Coil Units (FCU) in ceilings must:
- Have a minimum access panel of 450mm x 450 mm
- Be installed to allow for adequate access unhindered for:
- Routine maintenance
- Removal of filters
- Access to valves, motors, control box.
